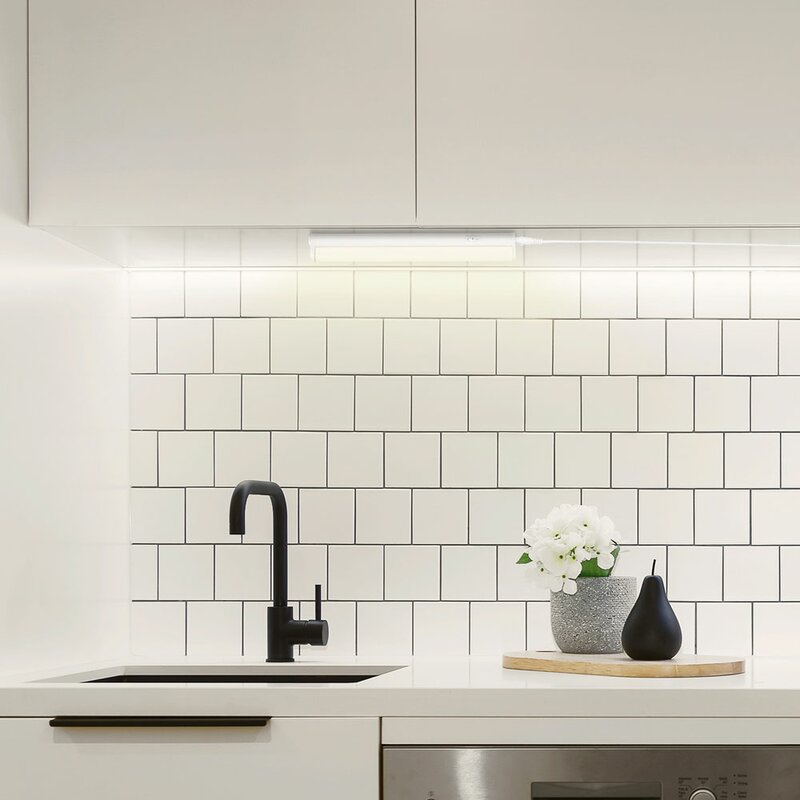

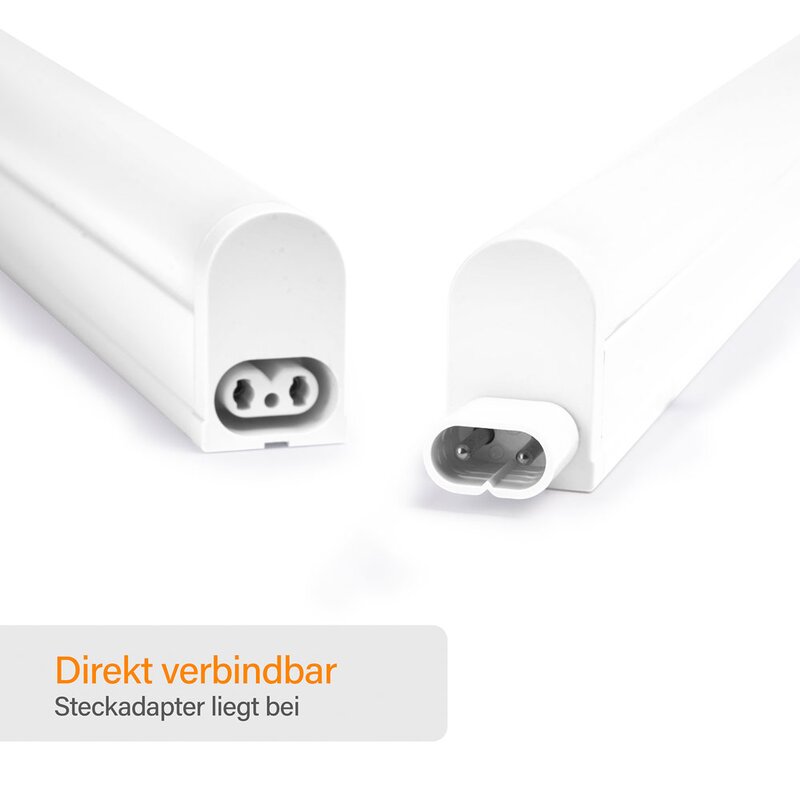

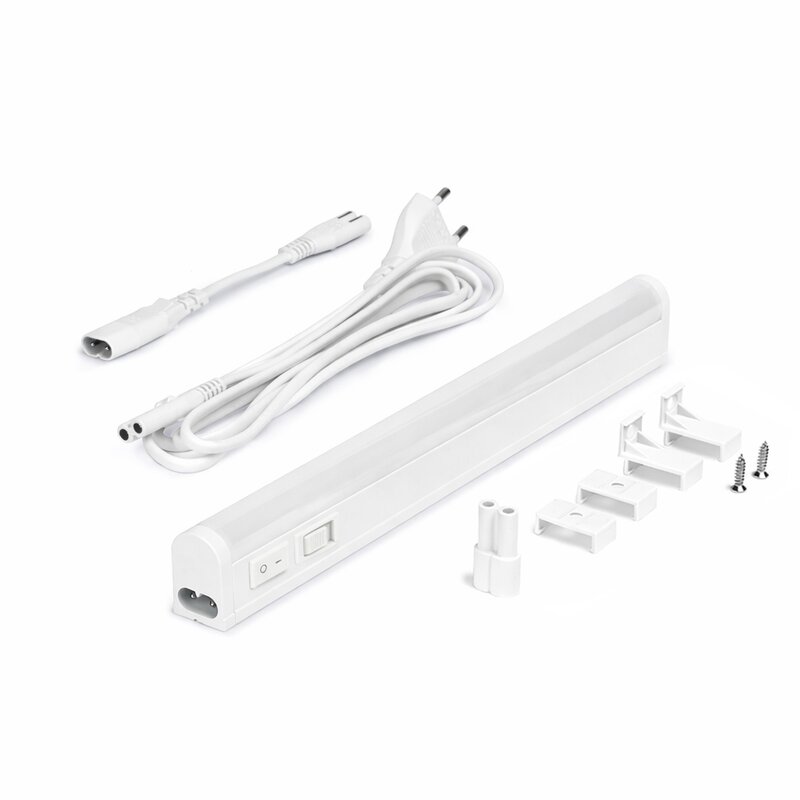

LED under-cabinet lights offer a practical and versatile lighting solution that can be ideally integrated under cabinets, shelves, or in display cases. Thanks to their slim design, they blend harmoniously into both modern and classic interior concepts. The luminaires feature an integrated switch for adjusting the light color. This allows you to flexibly choose between warm white, neutral white, and cool white light - depending on the specific application or personal preference. With the included connector, up to 12 luminaires can be linked in series and conveniently combined with one another. The energy-efficient LED technology ensures a long service life and low energy consumption, making these luminaires an environmentally friendly and low-maintenance lighting solution.
| Wattage: | 5 Watt |
LED Unterbauleuchte 30cm Weiß IP20 5W CCT 3000/4000/6500K mit Schalter
Elektrische Daten
Electrical Data
| Leistung in W wattage in W |
5 |
| Nennspannung in V Nominal voltage in V |
230 |
| Betriebsfrequenz in Hz Operating frequency in Hz |
50/60 |
Photometrische Daten
Photometrical Data
| Bemessungslichtstrom in lm Rated Luminous Flux in lm |
500 |
| Lichtfarbe (Bezeichnung) Color Temperature (description) |
Warmweiß / Neutralweiß / Tageslichtweiß Warm White / Neutral White / Daylight White |
| Farbtemperatur in K Color Temperature in K |
3000 / 4000 / 6500 |
| Farbwiedergabeindex Ra Color rendering index Ra |
80 |
| Dimmbar Dimmable |
Nein No |
| Quecksilbergehalt in mg Mercury content in mg |
0,00 |
| Quecksilberfrei Mercury-free |
Ja Yes |
| Lebensdauer in h Lifespan in h |
25000 |
Produkt Ausführung
Product Specification
| Farbe Color |
Weiß White |

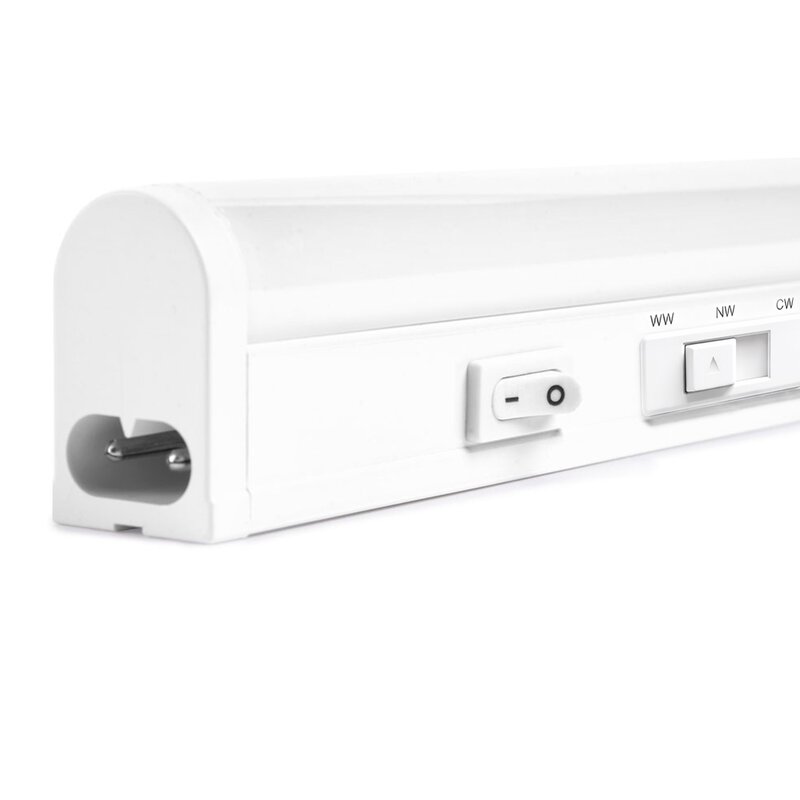

| Schalter Switch |
Kippschalter Toggle switch |
| Besonderheit Special feature |

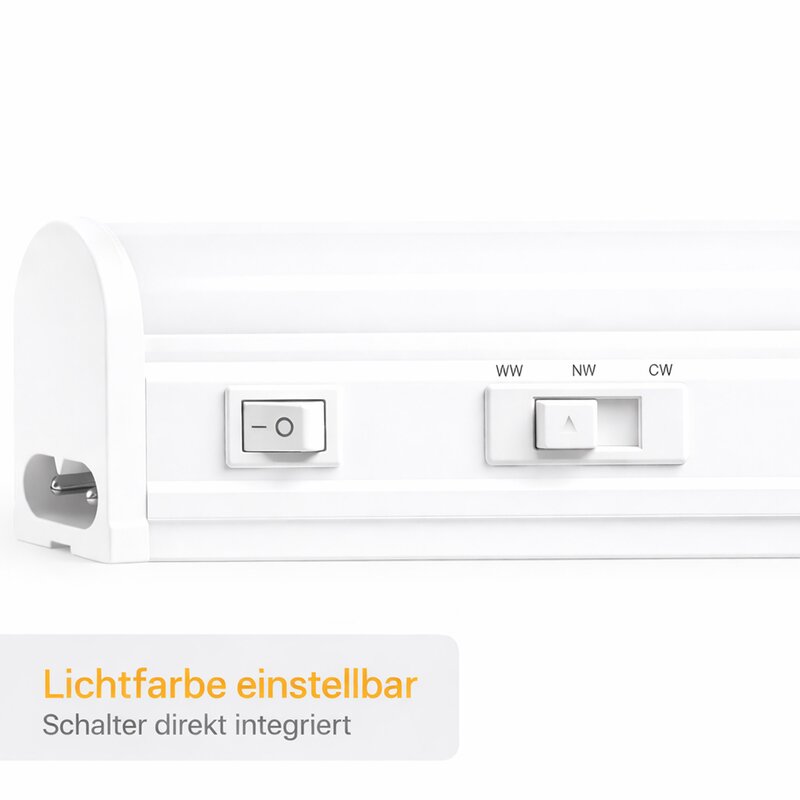

Lichtfarbe einstellbar Light color adjustable |
| Besonderheit Special feature |

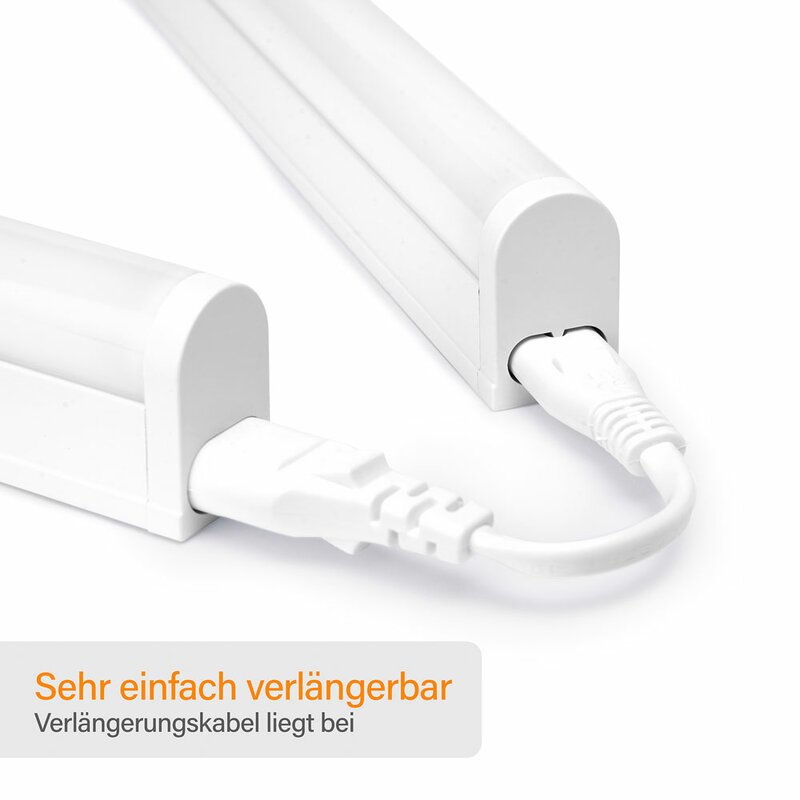

Verlängerbar (max. 12 Stück) Extendable (max. 12 pieces) |
Zertifikate und Standarts
Certificates and Standards
| Energieeffiziensklasse Energy efficency class |
F |
| Energieverbrauch Energy consumption |
5 kWh/1000h |
| Schutzklasse Protection class |
IP20 |
Abmessungen und Gewicht
Dimensions and Weight
| Länge in mm Lenght in mm |
300 |
| Breite in mm Width in mm |
23 |
| Höhe in mm Height in mm |
36 |
| Nettogewicht in g Net. Weight in g |
200 |
Bestellungen und Verpackungsinformation
Ordering and Packaging Information
| Artikelnummer Article number |
EAN Barcode |
Stück Pieces |
Abmessungen (in mm) Dimension (in mm) |
Gewicht (in g) Weight gross (in g) |
Volumen (in dm³) Volume (in dm³) |
| UL30CCT | 4251351809699 | 1 | 510 x 46 x 31 | 225 | 0.73 |
| UL30CCT | 4251351809699 | 40 | 530 x 265 x 260 | 10100 | 36.52 |
