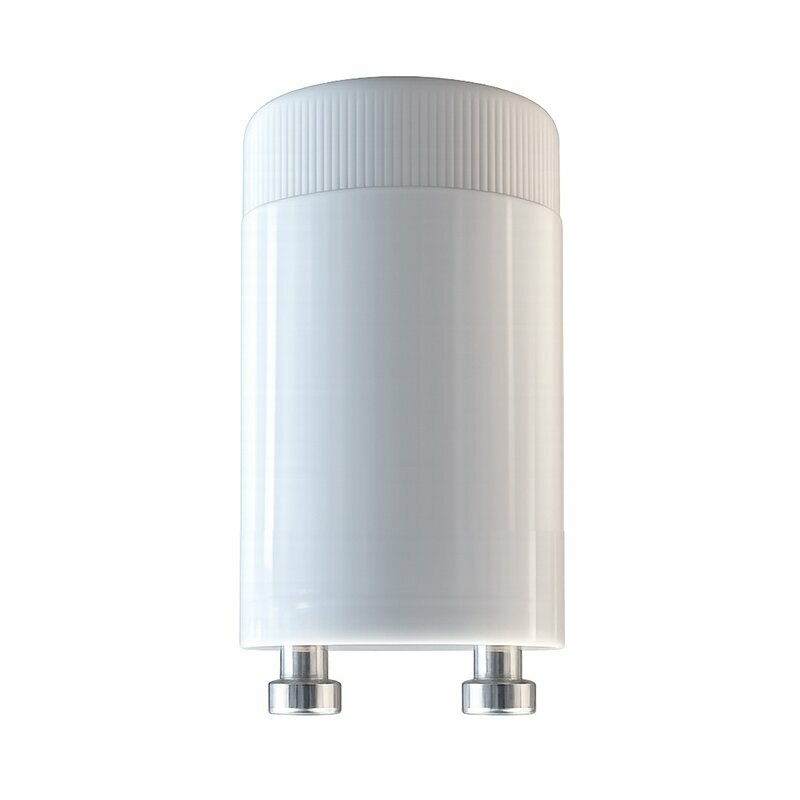

Starter ST10 for Fluorescent Tubes 4?65W Single
The ST10 starter is designed for the reliable operation of fluorescent tubes with a power rating of 4 to 65 watts in single-circuit applications.
Starter ST10 für Leuchtstoffröhren 4-65W Single
Elektrische Daten
Electrical Data
|
Leistung
in W Wattage in W |
4 - 65 |
|
Temperatur und Betriebsbedingungen
Working and temperature conditions |
-20°C bis +80°C |
|
Nennspannung
in V Nominal voltage in V |
220 - 240 |
Abmessungen und Gewicht
Dimensions and Weight
|
Durchmesser
in mm Diameter in mm |
20 |
|
Länge
in mm Length in mm |
38 |
|
Nettogewicht in g Net. Weight in g |
5 |
Bestellungen und Verpackungsinformation
Ordering and Packaging Information
| Artikelnummer
Article number |
EAN
Barcode |
Stück
Pieces |
Abmessungen
(in mm) Dimension (in mm) |
Gewicht
(in g)
Weight gross (in g) |
Volumen
(in dm³) Volume (in dm³) |
| ST10A | 4251351810084 | 1 | 6 | ||
| ST10A | 4251351810084 | 25 | 108 x 108 x 40 | 148 | 0.47 |
| ST10A | 4251351810084 | 2000 | 470 x 245 x 440 | 13000 | 50.67 |
