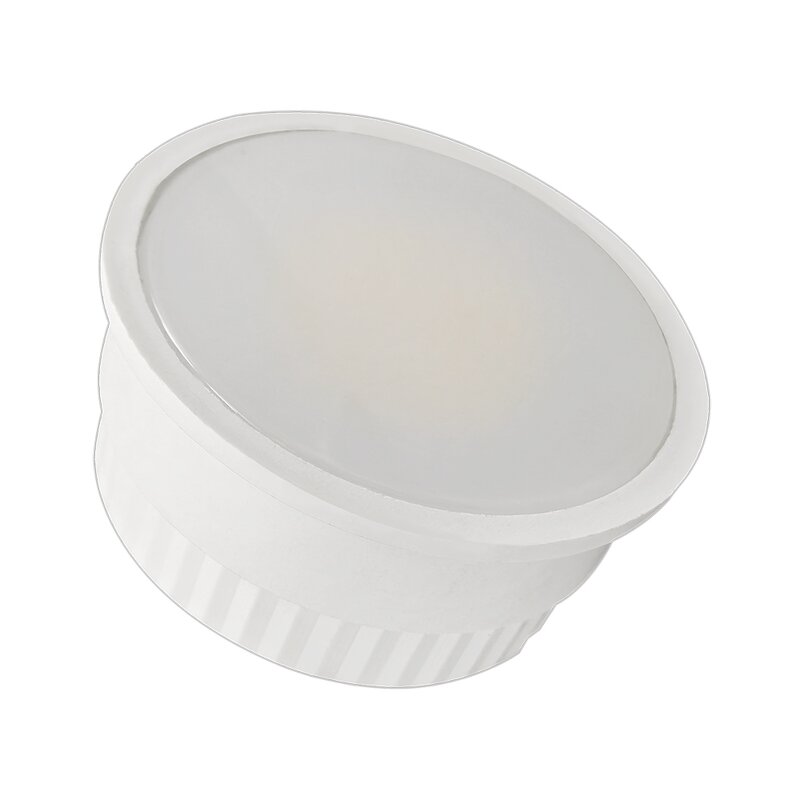

The 4.8W LED module delivers a luminous flux of 470 lumens and allows the light color to be adjusted via CCT between warm white (2700K), neutral white (4000K), and cool white (6000K). It is ideally suited for use in LEDmaxx recessed mounting rings. Thanks to its low installation depth and direct 230V connection, installation is quick and straightforward. The frosted surface also ensures glare-free and uniform Illumination.
| Lichtfarbe: | Wamweiß / Neutralweiß / Kaltweiß |
| Wattage: | 5 Watt |
LED Modul 4,8W = 50W 470lm 230V MATT CCT 3000K/4000K/6000K
Elektrische Daten
Electrical Data
|
Bemessungsleistung
in W Rated wattage in W |
4.8 |
|
Nennleistung
in W Nominal wattage in W |
4.8 |
|
Nennspannung
in V Nominal voltage in V |
220 - 240 |
|
Betriebsfrequenz
in Hz Operating frequency in Hz |
50/60 |
|
Leistungsaufnahme der herkömml. Lampe
in W Claimed equiv. conventional lamp power in W |
50 |
Photometrische Daten
Photometrical Data
|
Bemessungslichtstrom in lm Rated Luminous Flux in lm |
470 |
|
Nennlichtstrom in lm Nominal Luminous Flux in lm |
470 |
|
Bemessungshalbwertswinkel
in ° Rated Beam Angle in ° |
110 |
|
Lichtfarbe (Bezeichnung)
Color Temperature (description) |
CCT CCT |
|
Farbtemperatur
in K Color Temperature in K |
3000 / 4000 / 6000 |
|
Farbwiedergabeindex Ra
Color rendering index Ra |
80 |
|
Dimmbar
Dimmable |
Nein No |
Produkt Ausführung
Product Specification
|
Quecksilberfrei
Mercury-free |
Ja Yes |
|
Bemessungslebensdauer
in h
Rated lamp lifespan in h |
15.000 |
|
Nennlebensdauer
in h Nominal lamp lifespan in h |
15.000 |
|
Temperatur und Betriebsbedingungen
Working temperature and conditions |
-20 °C bis +40 °C |
Zertifikate und Standarts
Certificates and Standards
|
Energieeffiziensklasse
Energy efficency class |
E |
|
Energieverbrauch
Energy consumption |
5 kWh/1000h |
Abmessungen und Gewicht
Dimensions and Weight
|
Durchmesser
in mm Diameter in mm |
50 |
|
Länge
in mm Length in mm |
25 |
|
Kabellänge
in mm Cable Length in mm |
150 |
|
Nettogewicht in g Net. Weight in g |
Bestellungen und Verpackungsinformation
Ordering and Packaging Information
| Artikelnummer
Article number |
EAN
Barcode |
Stück
Pieces |
Abmessungen
(in mm) Dimension (in mm) |
Gewicht
(in g)
Weight gross (in g) |
Volumen
(in dm³) Volume (in dm³) |
| ML48W11V3 | 4251351810114 | 1 | |||
| ML48W11V3 | 4251351810114 |
